Rushi Engineers

Application – To cure powder paint, liquid paint, Teflon paint, varnishing, drying after pre-treatment , core drying application in foundry.

Type of oven – Batch type or conveyorised

Type of heating :

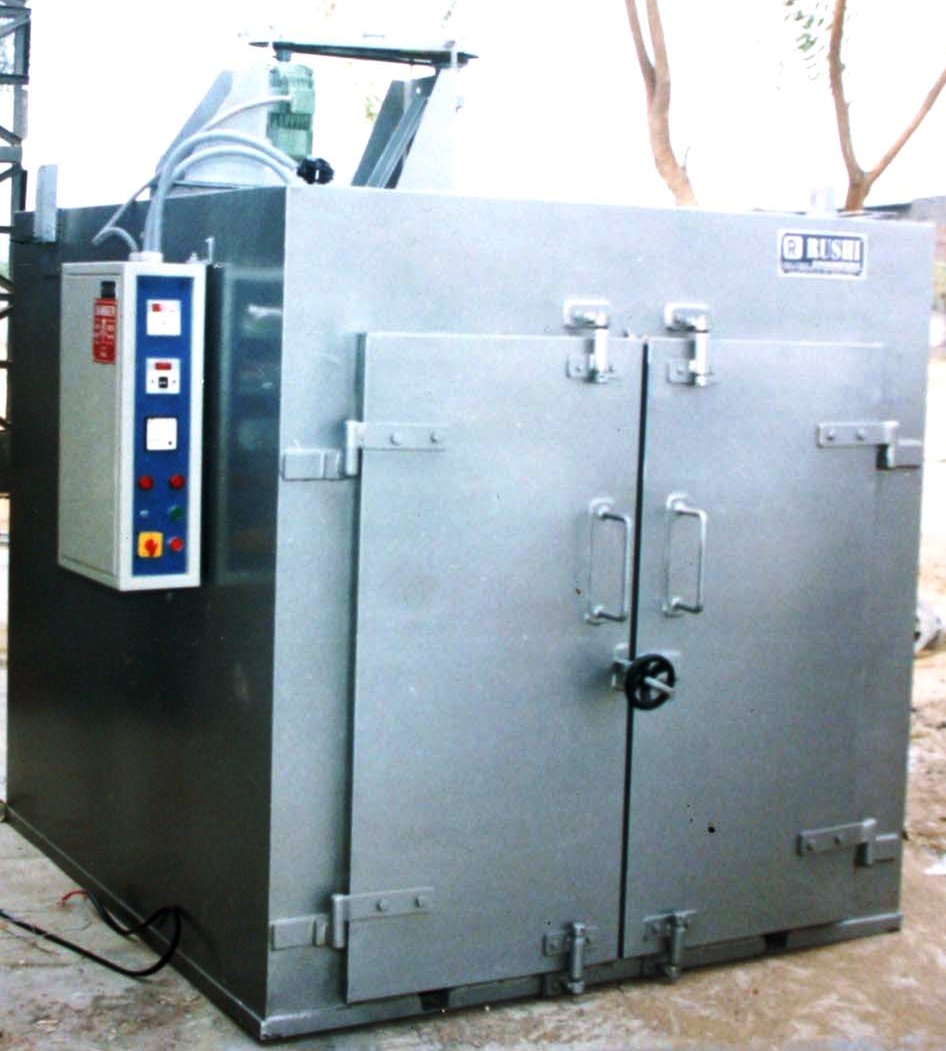

Electrical heating oven:

• Convectional electric air heater used.
• Force convection system
• Hot air circulation – vee belt driven is used.
• Low maintenance cost.

Infrared electrical oven:

• short wave infrared heater give instant heat to minimize curing time
• Equipment size reduce
• For similar type & plain article most Continent to used.
• More electric power require.
• Infrared heater life is short compare to conventional electric heater.

Gas fired oven:

• In this type of oven, Gas burner gas is direct mix with hot air circulating fan.
• Low fuel consumption.
• Fully automatic burner unit is used for safe operation of equipment.

Indirect type heating oven:

Hot gas is passes through tube in exchanger, outside tube area hot air circulation fan air is going. So no direct mixing of burner flue gas with oven air.

100% air is getting clear, so quality of paint result is optimum achieved continuously.

For diesel & gas indirect type oven is available of different size as per customer requirement.

Construction of oven:

Cassette type panel having both side metal sheet & inside high density rock-wool, mineral wool slab to minimize heat losses across panel.

For small size of oven equipment made one pcs assembly at factory.

For large size cassette type loose panel made at factory & final assembly at site.

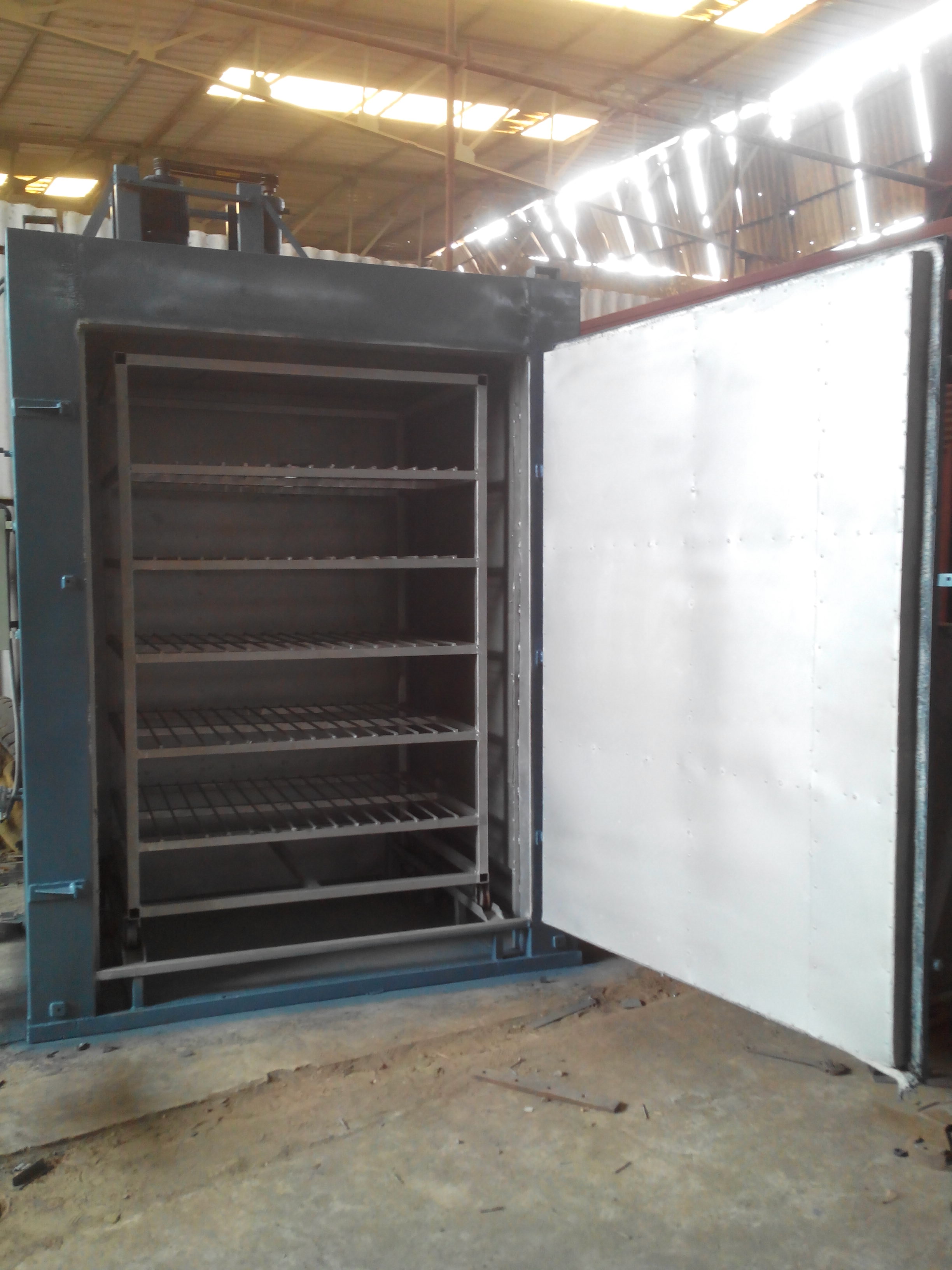

Door construction:

Heavy hinge type & spring lock for easy & quick opening & close operation.

Material handling:

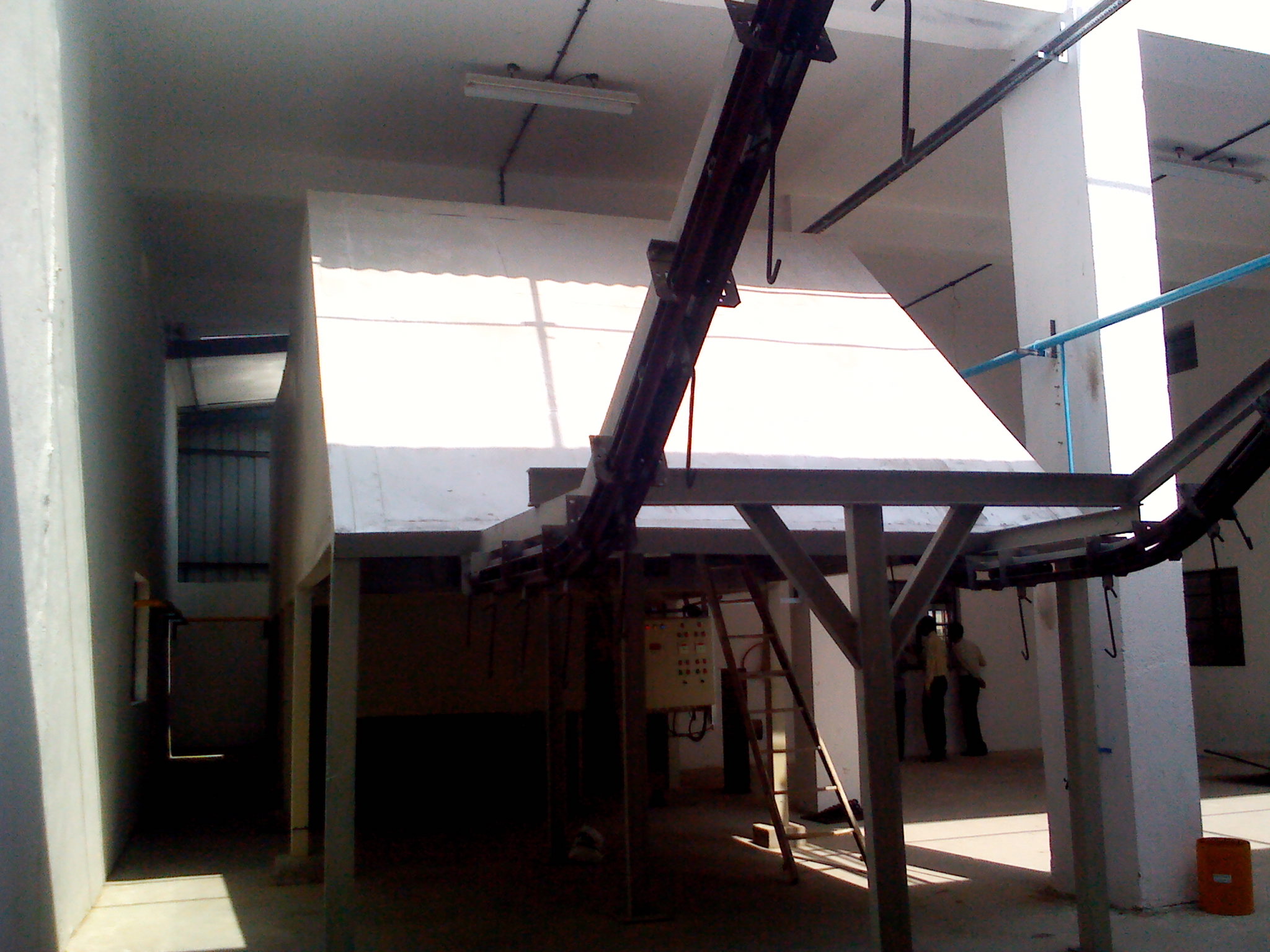

Manually or with power drive (gear-motor assembly) trolley at ground level or conveyorised system by over head conveyor/ floor conveyor

Control panel:

Temperature control is done by help of Digital temperature controller cum indicator
